M400S Tethered Lighting Drone Solution

Model No: M400S

Available — quote required

$15,999.00

Contact Expert Team

What's Included

  • 1x M400S Electric Ground Tether Base Station (with 80m tether cable)
  • 1x Airborne Power Supply Conversion Module (IP55)
  • 2x 500W High-Intensity LED Light Modules (100,000 Lumens total)

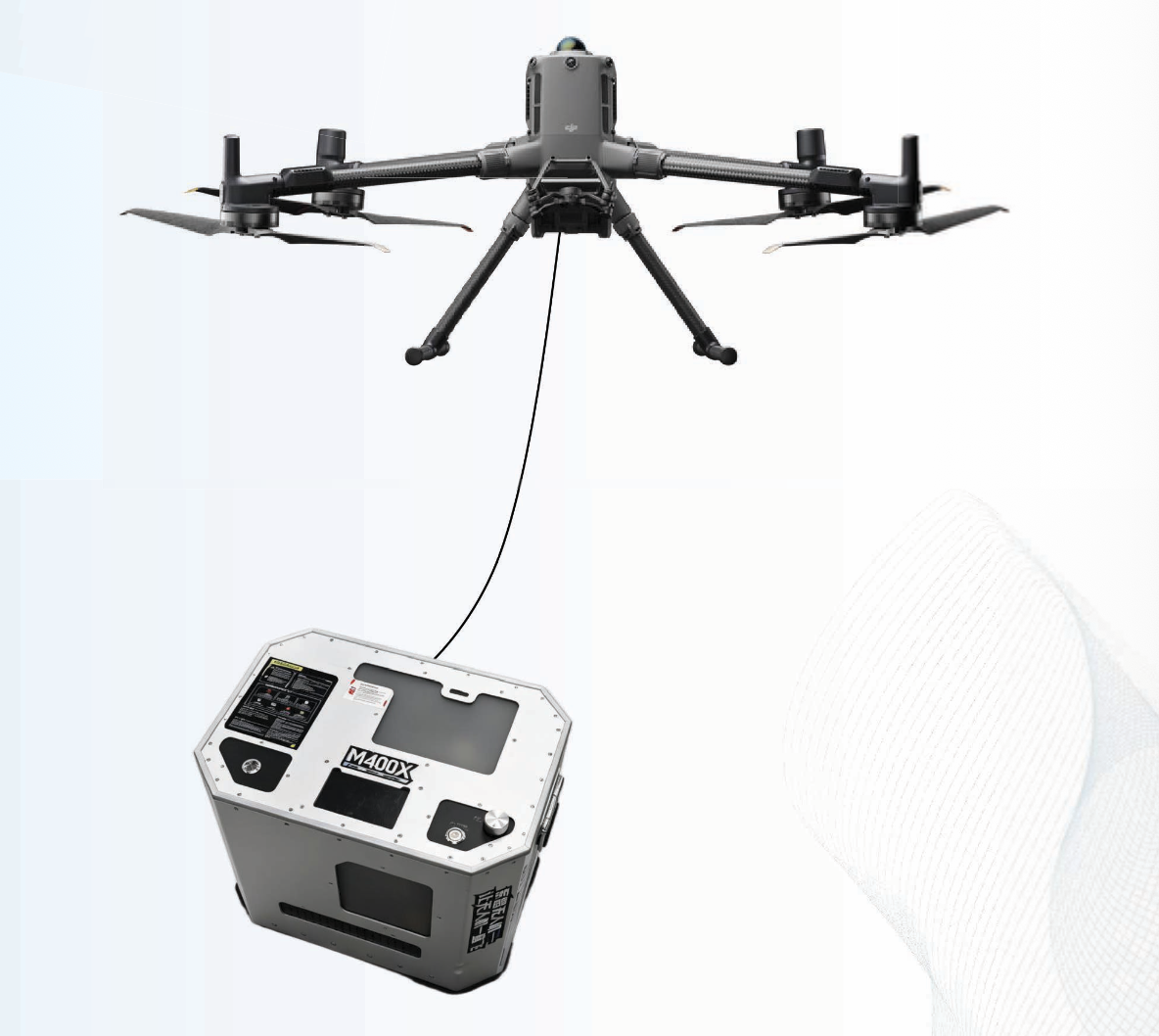

Continuous Tethered Power for Your DJI M400

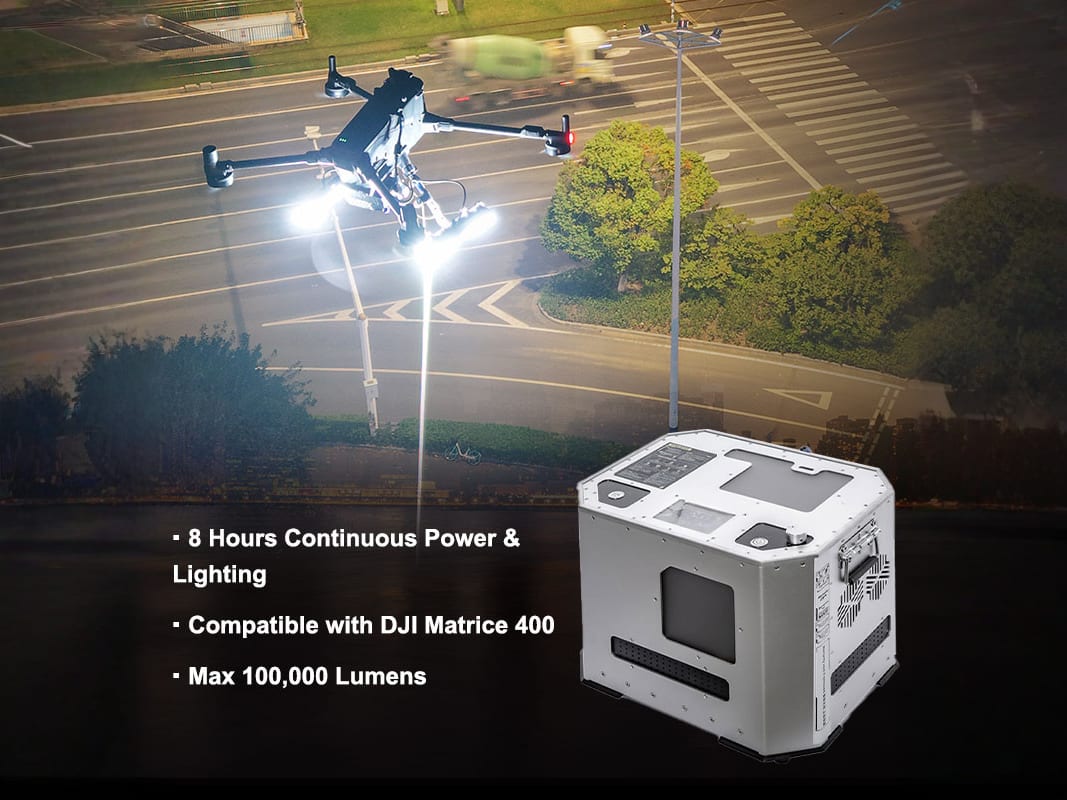

Transform your DJI M400 into a permanent aerial illumination station. The Vision Plus M400S Tethered System replaces standard flight batteries with ground-supplied power, enabling over 8 hours of continuous airborne operation. The portable base station feeds 3520W of power up the 80-meter ultra-lightweight cable directly to the airborne power module, making it an ideal force multiplier for night searches, disaster response, and industrial site lighting.

Continuous Tethered Power for Your DJI M400

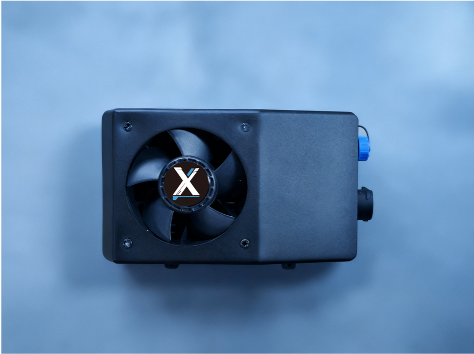

Aviation-Grade Safety & Voltage Regulation

Built for mission-critical operations, the airborne power supply delivers a constant regulated output voltage with less than ±1% fluctuation. It features full circuit protection—including input over/under voltage, output overcurrent, short-circuit, and over-temperature safeguards. If ground power is interrupted during flight, the system automatically triggers protection protocols so the aircraft can land safely.

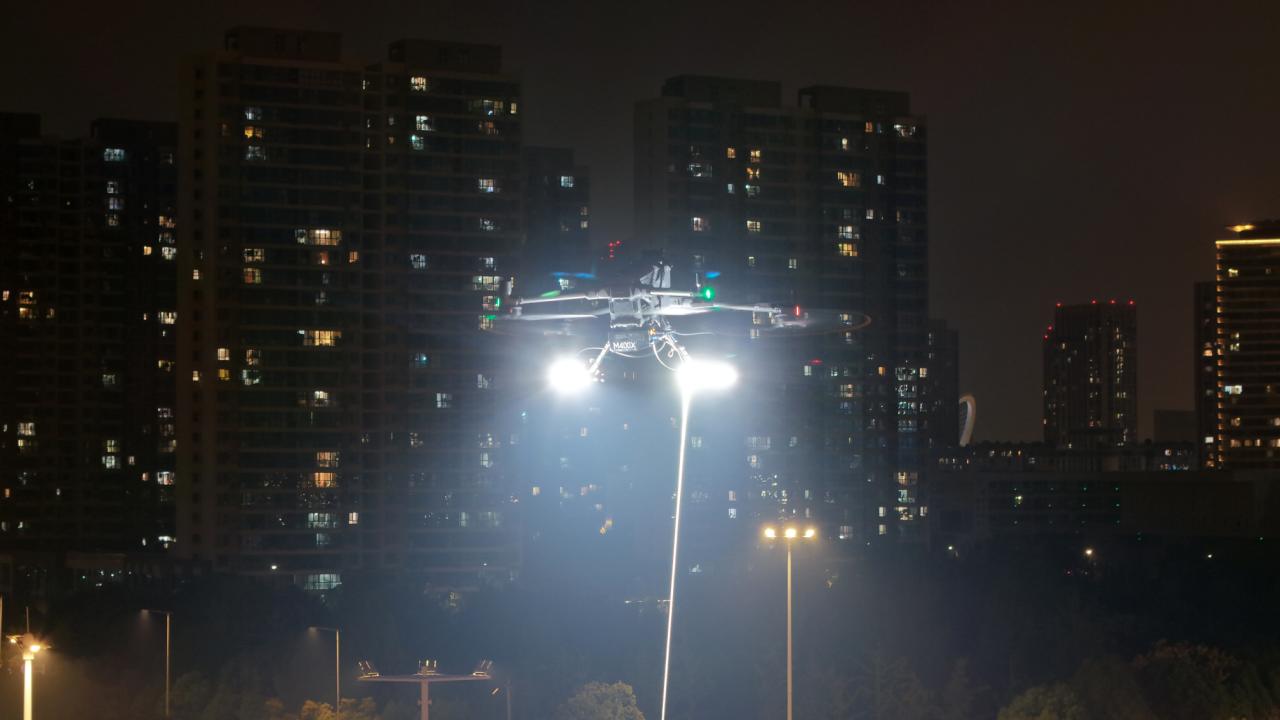

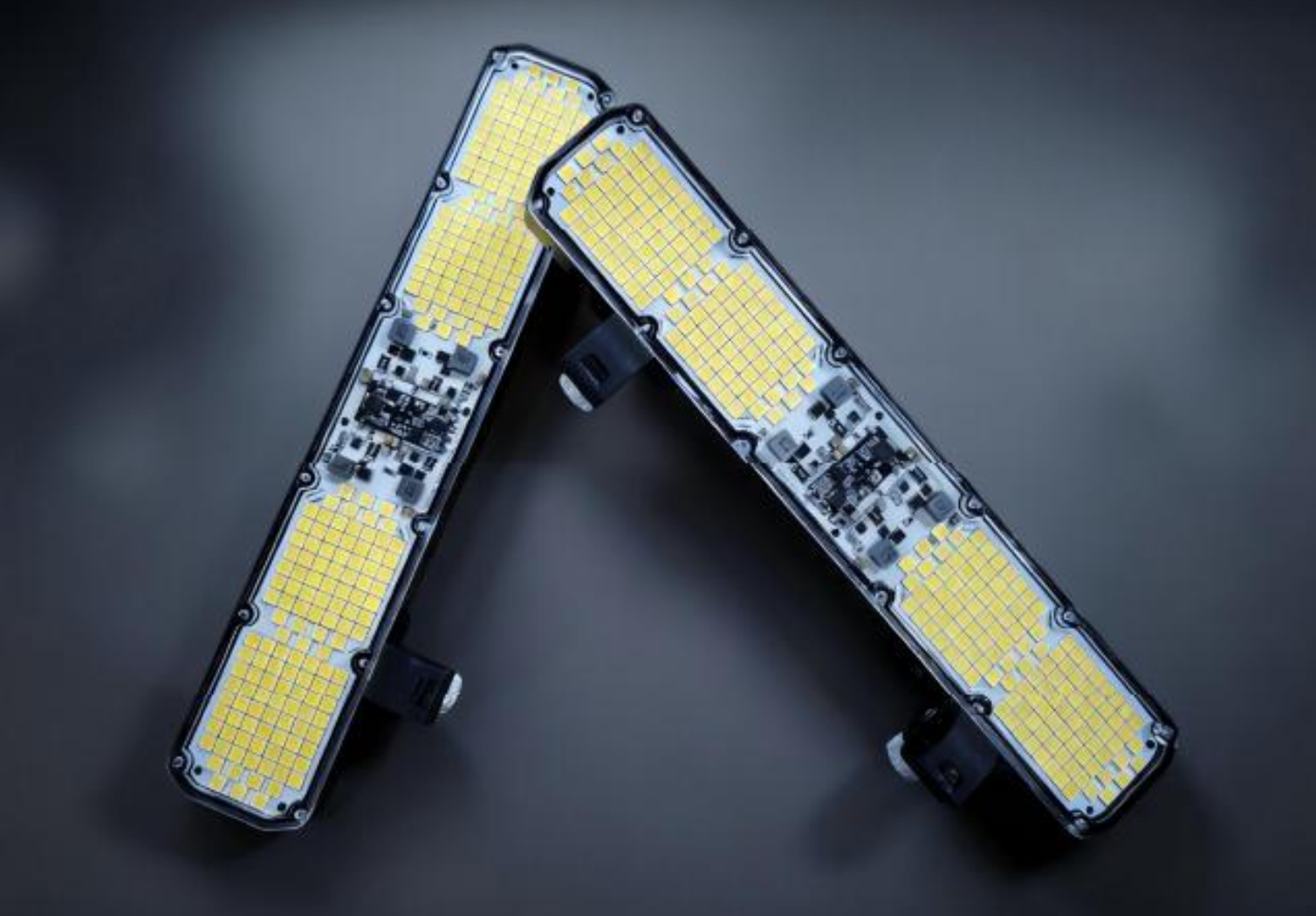

100,000 Lumens Dual LED Floodlight Payload

Turn night into day with the specialized M400 high-power light payload. Comprising two 500W LED light bars (1000W combined), the system projects 100,000 lumens across a broad 120° field of view. Recommended for operating altitudes up to 60 meters, the IP55-rated lighting modules function reliably in temperatures ranging from -15°C to +50°C.

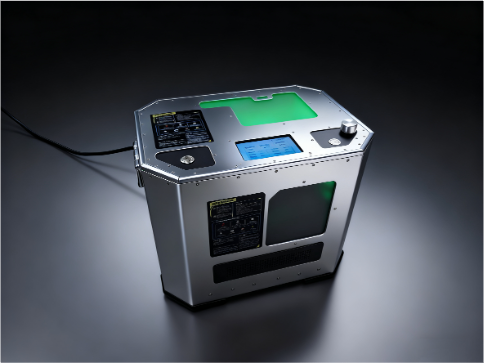

Smart Motorized Ground Station

Housed in an aviation aluminum alloy casing weighing 18kg, the ground base station includes an automated motorized spool (0∼2 m/s retraction speed) that dynamically manages cable tension. It connects to standard 220V AC mains, portable generators, or battery power stations and features Bluetooth connectivity for real-time remote telemetry.

Field-Ready Portability & Compatibility

Designed for rapid deployment in remote locations, the entire ground station weighs only 18kg and measures a compact 45x32x30cm, easily fitting into standard emergency response vehicles. The system requires a standard 220V AC (±10%) input and is fully compatible with mains electricity, portable gas generators, and mobile battery power stations. The aviation-grade tether cable is highly efficient, weighing just 1.8kg per 100 meters, ensuring minimal drag on the aircraft.

System Specifications at a Glance

Operating Altitudes: 80m standard cable length (60m recommended safe lighting altitude). Environmental Limits: Operates reliably from -15°C to +50°C. Light Payload Dimensions: 300 x 86 x 44mm per unit (2 units included).

Light Payload Weight: Ultra-lightweight at 500g per unit (1kg total). Max Takeoff Weight Support: Provides robust power delivery for drones up to 20kg MTOW. Warranty: Backed by a 12-month manufacturer warranty covering material and manufacturing defects.

100,000 Lumens Matrix Lighting

Dual 500W LED light modules with a wide 120° FOV to illuminate dark operational areas.

Continuous Ground Power

Enables 8+ hours of continuous flight via 220V AC ground supply.

IP55 Weatherproof Rating

Engineered for harsh emergency response, rain, and adverse weather conditions.

Rapid 10-Minute Deployment

Setup and launch the tethered system in under 10 minutes on-site.

Flight Safety Guarantee

Retains aircraft control and safe landing capability if ground power disconnects.

Bluetooth & Remote Telemetry

Live power monitoring and wireless remote station management.
